IECHO TK4S
The TK4S Large Format Cutting System is the ultimate solution for automated processing across multiple industries. Engineered for precision, it excels in full cutting, half cutting, engraving, creasing, grooving, and marking, delivering exceptional performance for all your large format needs.
With its intuitive operating system, the TK4S ensures a seamless user experience, showcasing outstanding processing results that push the boundaries of what's possible. Experience the future of cutting technology with TK4S, where innovation meets precision.
APPLICATIONS
Carbon fiber
Gasket
Automotive
Polymer
Paper
Composite
TOOLS for TK4S

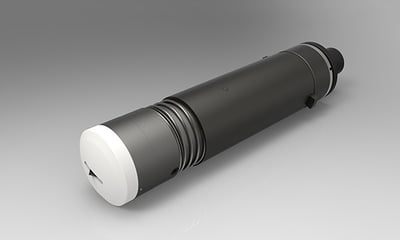

UCT
The IECHO UCT effortlessly cuts materials up to 5mm thick. As the most cost-effective cutting tool, it offers rapid cutting speeds and minimal maintenance costs. Its spring-loaded protective sleeve ensures precise cutting accuracy.
CTT
The IECHO CTT is designed for precise creasing of corrugated materials. With a range of specialized creasing tools, it works seamlessly with cutting software to create optimal creases along or against the material's structure, ensuring excellent results without damaging the surface.
VCT
Designed specifically for V-cut processing on corrugated materials, the IECHO V-Cut Tool can achieve angles of 0°, 15°, 22.5°, 30°, and 45°.
RZ
The IECHO RZ features an imported spindle with a rotation speed of 60,000 rpm and is driven by a high-frequency motor, making it suitable for cutting hard materials up to 20mm thick. Designed for 24/7 operation, it includes a customized cleaning device to remove dust and debris, while the air cooling system enhances blade longevity.

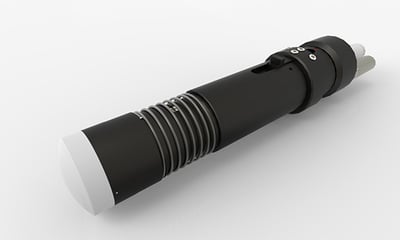

POT
The IECHO POT, powered by compressed air and featuring an 8mm stroke, is designed for cutting hard and compact materials. With various blade options, it achieves different processing effects and can cut materials up to 110mm thick using specialized blades.
KCT
The IECHO KCT Kiss Cut Tool is designed for cutting vinyl materials, allowing precise cuts through the top layer without damaging the bottom. It enables high-speed processing for efficient material handling.
EOT
The IECHO Electrical Oscillating Tool (EOT) is ideal for cutting medium-density materials. Compatible with various blades, it efficiently cuts different materials and can handle arcs of up to 2mm.
